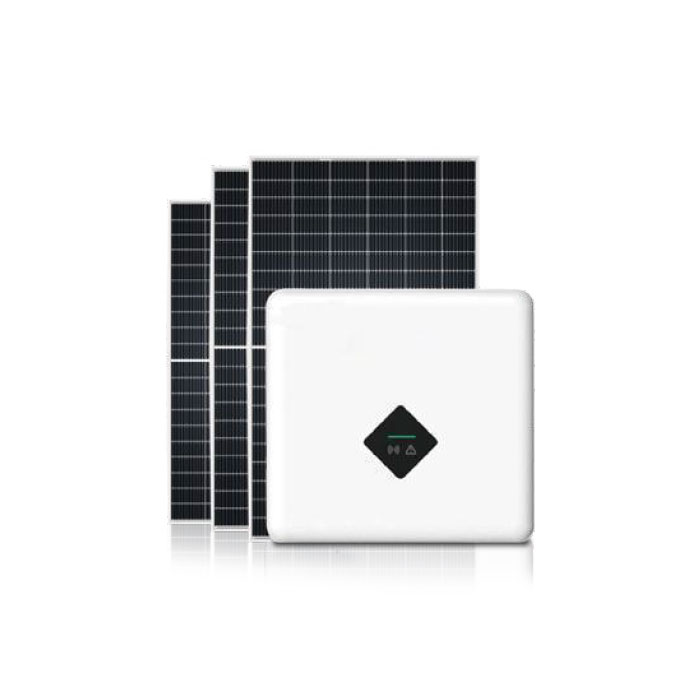

On-Grid Solar System Single-phase Series

Niyue® as the professional manufacturer, we would like to provide you On-Grid Solar System Single-phase Series. And we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

You can rest assured to buy On-Grid Solar System Single-phase Series from Niyue® factory and we will offer you the best after-sale service and timely delivery.


  • Light in weight and small size, easy installation
  • High quality & efficiency with German technology
  • Strong safety. Flexible application for residential&commercial using
  • High return on investment
  • Low noise, environment-friendly


Model No ASW3000-S ASW5000-S
Basic Configuration(Adjustable)
Inverter 3000W 5000W
Solar Panels 10pcs 345W Mono 16pcs 345W Mono
Max. component access power 4500 Wp STC  7500 Wp STC
Max.inputvoltage 580V 580V
MPP voltagerange/ratedinput voltage 80V-550V/360V 80V-550V/360V
Initial input voltage 80V 80V
Max.short circuit current per MPPinpu 18A 18A
Max. input current per string 12 A 12A
Number o f independent   MPPTinputs 2  2
Strings per MPP input 1  1
Rated activepower 3000 W  5000 W
Max. ACapparent power 3000VA  5000VA
Nominal AC voltage/ range 220V,230V,240V/180V-280V
ACpower frequency/range 50 Hz/45 Hz-55 Hz-60 Hz/55 Hzto 65 Hz
Rated power frequency /rated grid voltage 50  Hz/230V
Max.output current 15A 22.7A
Powerfactor at rated power >0.99
Adjustable displacement power factor 0.8超前..0.8滞后/0.8 lagg ing to 0.8lead ing
Ma.T HD <3%
Max.efficiency /E uro pean Efficiency 97.85%/97.3%  97.85%/97.6%
MPPT efficiency 99.50%
Protective Devi ces
DCisol ator
PViso /Grid monitori ng ●/●
DC reversepolarity protection /ACshort-circuit current capability ●/●
GFCl functi on
Protection class (according to IEC  62103)/Overvoltagecategory(accor di ng  toIEC60664-1)    I/II(DC),I(AC)
General Data
Interfaces:RS485/RS4851&Ethernet&WI FI&a.RJ452(DRED) ●/○
Dimensions (WxHxD) 376/355/145 mm
Weight 12 kg
Installation Indoor & O utdoor
Degree of protection(according tolEC 60529) IP65

Working Mode Diagram

WIFI-Stick / 4G-Stick

  • Minimum 7 days of secure data storage function
  • Supports automatic data upload function once communication reestablished
  • Supports monitoring for up to 5 devices per stick
  • Plug and play design, easy to install
  • Automatic time synchronisation
  • Supports all mainstream WLAN &broadband cellular network protocols
  • IP65 protection class
  • High operating temperature range

Cloud & App
