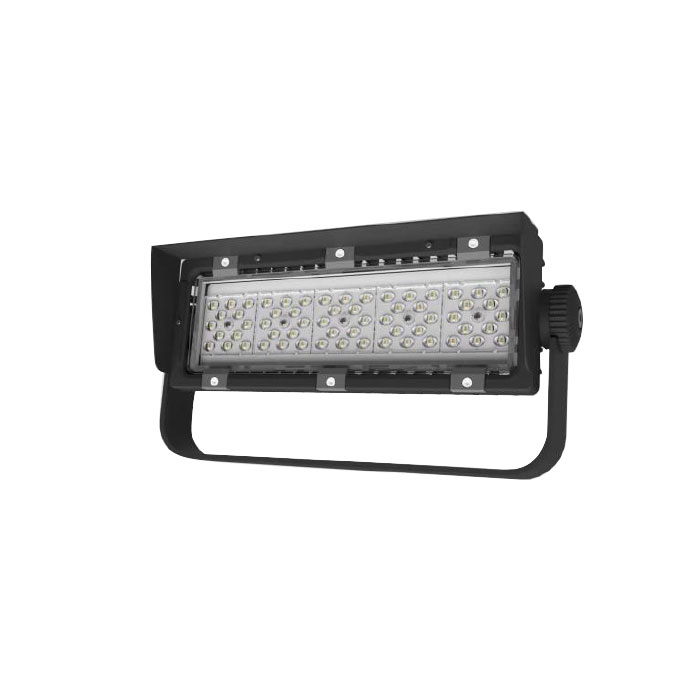

You can rest assured to wholesale 100W 200W Led Highbay Light from our factory. our product quality is guaranteed and the price is low. Welcome to place an order, Niyue® is one of the professional 100W 200W Led Highbay Light manufacturers and suppliers in China.
1. The splicing design of aluminum die-casting modules (patent) can be customized at will, with multiple lens options, suitable for different lighting environments, can improve quality and aesthetics, front and rear, left and right ventilation to form a good ventilating environment, which makes it easier to dissipate heat;
2. The dial type adjusts the angle according to the demand, and the lamp is more stable. The whole lamp adopts high-quality stainless steel 304 screws and powder baking process, which is beautiful and generous, high-strength, corrosion-resistant, and impactresistant. It is suitable for most outdoor harsh environments;
3. The lamp adopts a unique professional light distribution design, with high light transmittance, no undesirable glare, eliminating visual fatigue and line of sight interference, improving human comfort and making tunnel driving safer;
4. High lumen output, high CRI, multi-color temperature, multi-lens selection, to meet a variety of lighting needs;
5. Green and environmental protection, long service life, protection grade IP66, no fog or frost, soft lighting effect;
| Model | 290D-BL100 | 290S-BL200 | 290D-TJ80 | 290S-TJ160 |
| Power(w) | 100 | 200 | 80 | 160 |
| Input voltage | 100-305/50/60Hz | 100-305/50/60Hz | 100-305/50/60Hz | 100-305/50/60Hz |
| LED Chip Type | OSRAM /PHILIPS | OSRAM /PHILIPS | OSRAM /PHILIPS | OSRAM /PHILIPS |
| Light Efficiency | 120~180Lm/w | 120~180Lm/w | 120~180Lm/w | 120~180Lm/w |
| Optical Lens | 60°&90° | 60°&90° | 60°&90° | 60°&90° |
| CCT | 2700-6000K | 2700-6000K | 2700-6000K | 2700-6000K |
| CRI | >70&80 | >70&80 | >70&80 | >70&80 |
| PF | ≥95 | ≥95 | ≥95 | ≥95 |
| Insulation Class | Class Ⅰ | Class Ⅰ | Class Ⅰ | Class Ⅰ |
| Size: L*W*H(mm) | 336*162*92 | 872*108*110 | 336*162*52 | 872*108*110 |
| IP | IP65 | IP65 | IP65 | IP65 |
| Working TEMP | -40℃~﹢50℃ | -40℃~﹢50℃ | -40℃~﹢50℃ | -40℃~﹢50℃ |
| Life | 50000H | 50000H | 50000H | 50000H |
1.Please use the correct power supply
2.The use of voltage can not exceed the specified range
3.Please read the product installation manual carefully before using
