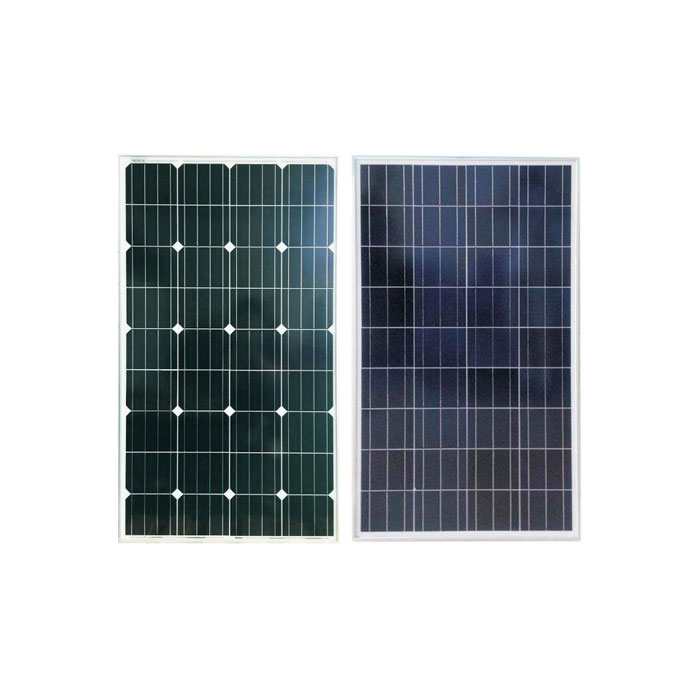

100-110W Mono Poly solar Module
  • 100-110W Mono Poly solar Module100-110W Mono Poly solar Module

100-110W Mono Poly solar Module

You can rest assured to buy customized 100-110W Mono Poly solar Module from Niyue®. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

Niyue® as one of the professional China 100-110W Mono Poly solar Module manufacturers and factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of 100-110W Mono Poly solar Module and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation. We assure you of our high quality services at all time.

PRODUCT FEATURE


  • Bypass diode minimizes the power drop by shade.
  • The conversion efficiency of solar cell is above 18.8%.
  • White tempered glass ,EVA resin,weather proof film and anodized aluminum frame to provide eficient protection from the severest environmental conditions.
  • Waterproof.Perfect for grid applications.
  • Product guarantee 10 years.


Quality Assurance

  • Electrical Insulation test
  • Outdoor exposure test
  • Hot-spot endurance test
  • UV-exposure
  • Thermal cycling test
  • Humidity freeze test
  • Damp heat Test
  • Robustness of terminations test
  • Wet leakage current test
  • Mechanical load test
  • Hail impact test
  • Bypass diode thermal test

Electric Performance Typical Performance Characterics

Short Circuit Current Temperature Coefficiant %/℃ 0.06
Open Circuit Voltage Temperature Coefficient %/℃ -0.34
Maximum Power Temperature Coefficient     %/℃ -0.47
Performance Warranty : 90%output ,12 years

80%output, 25 years

PRODUCT SPECIFICATION

Type Of Module NB-100W NB-110W
Maximum Power (W) 100 110
Tolerance(%) ±3% ±3%
Open Circuit Voltage (V) 21.78 22.39
Short Circuit Current (A) 5.83 6.24
Maximum Power Voltage (V) 18.00 18.50
Maximum Power Current (A) 5.56 5.95
Module Efficiency(%) 14.49 15.94
Solar Cell Efficiency(%) 17.65 19.42
Series Fuse Rating (A) 15 15
Terminal Box IP65 IP65
Maximum system voltage (V) DC1000 DC1000
Operating Temperature(℃) -40℃--85℃ -40℃-85℃
Dimension 1030*670*30MM 1030*670*30MM
Weight 7.2KG/PCS 7.2KG/PCS
Packing 2 pcs in one carton 2 pcs in one carton

Electrical Characteristics
