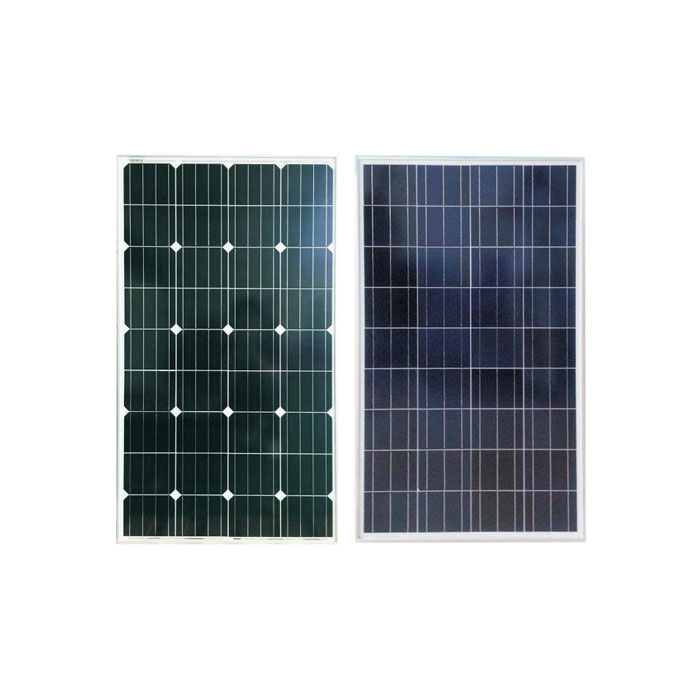

China 120- 130W Mono Poly solar Module Suppliers, Manufacturers - Factory Direct Price

Product Description

Niyue® as one of the professional China 120- 130W Mono Poly solar Module manufacturers and factory, we are strong strength and complete management. Also, we have own exporting license. We mainly deal in making a series of 120- 130W Mono Poly solar Module and so on. We stick to the principal of quality orientation and customer priority, we sincerely welcome your letters, calls and investigations for business cooperation. We assure you of our high quality services at all time.

PRODUCT FEATURE

Bypass diode minimizes the power drop by shade.
The conversion efficiency of solar cell is above 18.8%.
White tempered glass ,EVA resin,weather proof film and anodized aluminum frame to provide eficient protection from the severest environmental conditions.
Waterproof.Perfect for grid aplications.
Product guarantee 10 years.

Quality Assurance

Electrical Insulation test
Outdoor exposure test
Hot-spot endurance test
UV-exposure
Thermal cycling test
Humidity freeze test

Damp heat Test
Robustness of terminations test
Wet leakage current test
Mechanical load test
Hail impact test
Bypass diode thermal test

Electric Performance Typical Performance Characterics

Short Circuit Current Temperature Coefficiant %/℃	0.06
Open Circuit Voltage Temperature Coefficient %/℃	-0.34
Maximum Power Temperature Coefficient %/℃	-0.47
Performance Warranty : 90%output ,12 years
80%output, 25 years

PRODUCT SPECIFICATION

Type Of Module	NB-120W	NB-130W
Maximum Power (W)	120	130
Tolerance(%)	±3%	±3%
Open Circuit Voltage (V)	21.78	22.39
Short Circuit Current (A)	7.00	7.38
Maximum Power Voltage (V)	18.00	18.50
Maximum Power Current (A)	6.67	7.03
Module Efficiency (%)	14.93	16.17
Solar Cell Efficiency(%)	17.76	19.25
Series Fuse Rating (A)	15	15
Terminal Box	IP65	IP65
Maximum system voltage (V)	DC1000	DC1000
Operating Temperature(℃)	-40℃--85℃	40℃--85℃
Dimension	120067030MM	120067030MM
Weight	9.2KG/PCS	9.2KG/PCS
Packing	2 pcs in one carton	2 pcs in one carton
