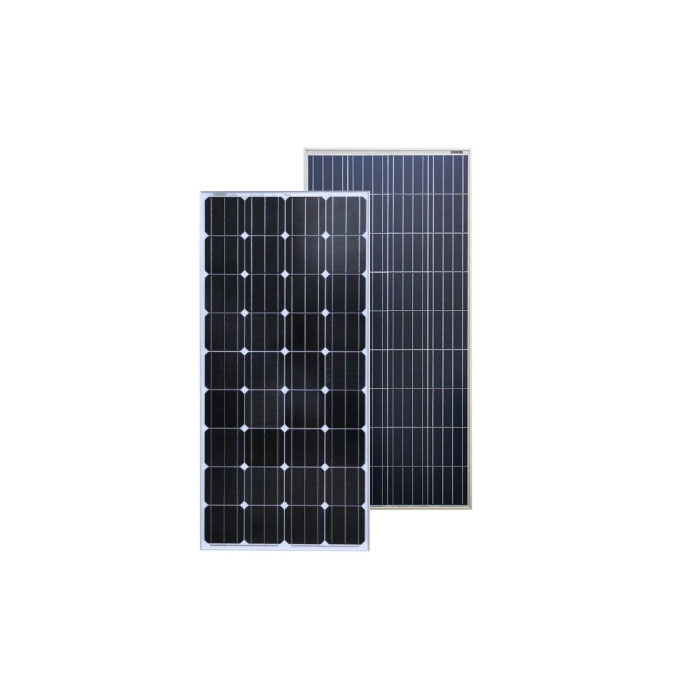

150-165W Mono Poly solar Module
  • 150-165W Mono Poly solar Module150-165W Mono Poly solar Module

150-165W Mono Poly solar Module

Niyue® is a professional 150-165W Mono Poly solar Module manufacturers and suppliers in China, you can rest assured to wholesale and customized 150-165W Mono Poly solar Module from our factory and we will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

150-165W Mono Poly solar Module FEATURE

  • Bypass diode minimizes the power drop by shade.
  • White tempered glass ,EVA resin,weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
  • Waterproof.Perfect for grid applications.
  • Product guarantee 10 years.

Quality Assurance

  • Electrical Insulation test
  • Outdoor exposure test
  • Hot-spot endurance test
  • UV-exposure
  • Thermal cycling test
  • Humidity freeze test
  • Damp heat Test
  • Robustness of terminations test
  • Wet leakage current test
  • Mechanical load test
  • Hail impact test
  • Bypass diode thermal test

Electric Performance Typical Performance Characterics

Short Circuit Current Temperature Coefficiant %/℃ 0.06
Open Circuit Voltage Temperature Coefficient %/℃ -0.34
Maximum Power Temperature Coefficient     %/℃ -0.47
Performance Warranty : 90%output ,12 years

80%output, 25 years


Type  Of Module NB-P150W NB-P155W NB-P160W NB-P165W
Maximum Power (W) 150 155 160 165
Tolerance(%) ±3% ±3% ±3% ±3%
Open Circuit Voltage (V) 21.8 21.9 22.1 22.4
Short Circuit Current (A) 8.75 8.99 9.18 9.36
Maximum Power Voltage (V) 18 18.1 18.3 18.5
Maximum Power Current (A) 8.33 8.56 8.74 8.92
Module Efficiency(%) 15.1 15.6 16.1 16.6
Solar Cell Efficiency(%) 17.48 18.07 18.65 19.23
Series Fuse Rating (A) 15 15 15 15
Terminal Box IP65
Maximum system voltage (V) DC1000
Operating Temperature(℃) -40℃--85℃
Dimension 1480*670*30MM
Weight 10.4KG/PCS
Packing 2 pcs in one carton or 35pcs/ pallet

Electrical Characteristics
