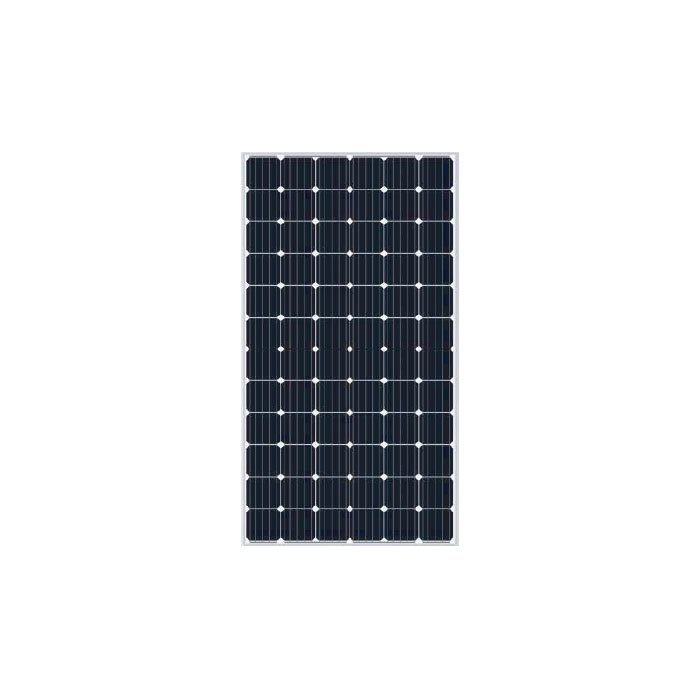

330-360W Mono Poly solar Module
  • 330-360W Mono Poly solar Module330-360W Mono Poly solar Module

330-360W Mono Poly solar Module

As a professional 330-360W Mono Poly solar Module manufacture, you can rest assured to buy 330-360W Mono Poly solar Module from our factory and Niyue® will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

Niyue® is one of the famous China 330-360W Mono Poly solar Module manufacturers and suppliers. Our factory specializes in manufacturing of 330-360W Mono Poly solar Module. Welcome to buy 330-360W Mono Poly solar Module from us. Every request from customers is being replied within 24 hours.

PRODUCT FEATURE


  • Bypass diode minimizes the power drop by shade.
  • White tempered glass ,EVA resin,weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
  • Waterproof.Perfect for grid applications.
  • Product guarantee 10 years.


Quality Assurance

  • Electrical Insulation test
  • Outdoor exposure test
  • Hot-spot endurance test
  • UV-exposure
  • Thermal cycling test
  • Humidity freeze test
  • Damp heat Test
  • Robustness of terminations test
  • Wet leakage current test
  • Mechanical load test
  • Hail impact test
  • Bypass diode thermal test

Electric Performance Typical Performance Characterics

Short Circuit Current Temperature Coefficiant %/℃ 0.06
Open Circuit Voltage Temperature Coefficient %/℃ -0.34
Maximum Power Temperature Coefficient     %/℃ -0.47
Performance Warranty : 90%output ,12 years

80%output, 25 years

PRODUCT SPECIFICATION

Type Of Module NB-72-M330W NB-72-M335W NB-72-M340W NB-72-M345W NB-72-M350W NQ-72-M255W
INO-TZ-W100OVV
NB-72-M360W
Maximum Power (W) 330 335 340 345 350 355 360
Tolerance(%) ±3% ±3% ±3% ±3% ±3% ±3% ±3%
Open Circuit Voltage (V) 45.1 45.4 45.6 45.9 46.1 46.3 46.6
Short Circuit Current (A) 9.29 9.38 9.47 9.56 8.96 9.06 9.16
Maximum Power Voltage (V) 37.3 37.5 37.7 37.9 38.1 38.3 38.5
Maximum Power Current (A) 8.85 8.93 9.02 9.10 9.19 8.7 8.83
Module Efficiency (%) 17.0 17.3 17.5 17.8 18.0 18.3 18.6
Solar Cell Efficiency(%) 19.23  1952
Iviv
19.81 20.10 20.40 20.69 20.98
Series Fuse Rating (A) 15 15 15 15 15 15 15
Terminal Box IP65
Maximum system voltage (V) DC1000
Operating Temperature(℃) -40℃--85℃
Dimension 1956*992*35MM OR 1956*992*40MM
Weight 22KG/PCS
Packing 2 pcs in one carton or 26pcs/ pallet

Electrical Characteristics
