365-380W Mono Poly solar Module
  • 365-380W Mono Poly solar Module365-380W Mono Poly solar Module

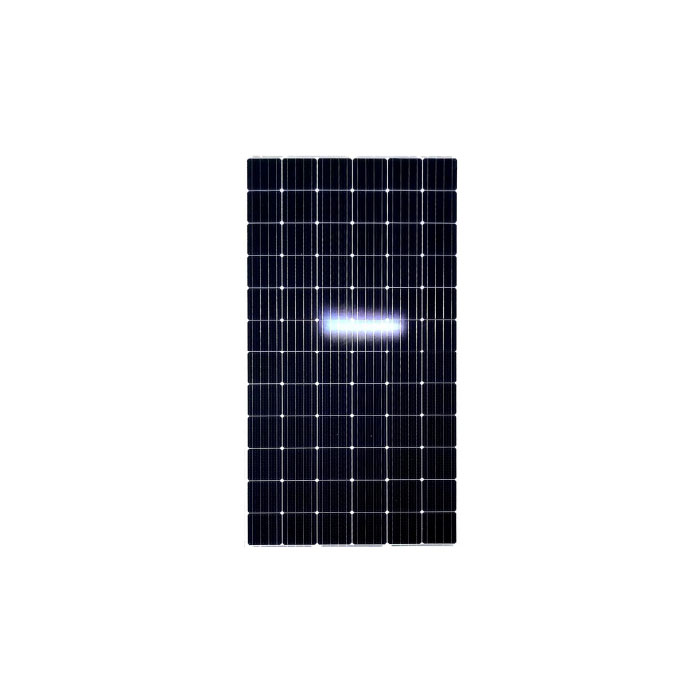

365-380W Mono Poly solar Module

As the professional manufacture, Niyue® would like to provide you 365-380W Mono Poly solar Module. And Niyue® will offer you the best after-sale service and timely delivery.

Send Inquiry

Product Description

You can rest assured to buy 365-380W Mono Poly solar Module from Niyue® factory and we will offer you the best after-sale service and timely delivery.

PRODUCT FEATURE

  • Bypass diode minimizes the power drop by shade.
  • White tempered glass ,EVA resin,weather proof film and anodized aluminum frame to provide efficient protection from the severest environmental conditions.
  • Waterproof.Perfect for grid applications.
  • Product guarantee 10 years.

Quality Assurance

  • Electrical Insulation test
  • Outdoor exposure test
  • Hot-spot endurance test
  • UV-exposure
  • Thermal cycling test
  • Humidity freeze test
  • Damp heat Test
  • Robustness of terminations test
  • Wet leakage current test
  • Mechanical load test
  • Hail impact test
  • Bypass diode thermal test

Electric Performance Typical Performance Characterics

Short Circuit Current Temperature Coefficiant %/℃ 0.06
Open Circuit Voltage Temperature Coefficient %/℃ -0.34
Maximum Power Temperature Coefficient     %/℃ -0.47
Performance Warranty : 90%output ,12 years

80%output, 25 years

PRODUCT SPECIFICATION

Type  Of Module NB-72-M365W NB-72-M370W NB-72-M375W NB-72-M3380W
Maximum Power (W) 365 370 375 380
Tolerance(%) ±3% ±3% ±3% ±3%
Open Circuit Voltage (V) 45.9 46.1 46.3 46.6
Short Circuit Current (A) 10.11 8.96 9.06 9.16
Maximum Power Voltage (V) 37.9 38.1 38.3 38.5
Maximum Power Current (A) 9.63 9.71 8.7 8.83
Module Efficiency(%) 18.5 18.8 19.0 19.3
Solar Cell Efficiency(%) 21.17 21.46 21.75 22.04
Series Fuse Rating (A) 15 15 15 15
Terminal Box IP65
Maximum system voltage (V) DC1000
Operating Temperature(℃) -40℃--85℃
Dimension 1977*998*35MM or 1977*998*40MM
Weight 22.5KG/PCS
Packing 2 pcs in one carton or 26pcs/ pallet

Electrical Characteristics
